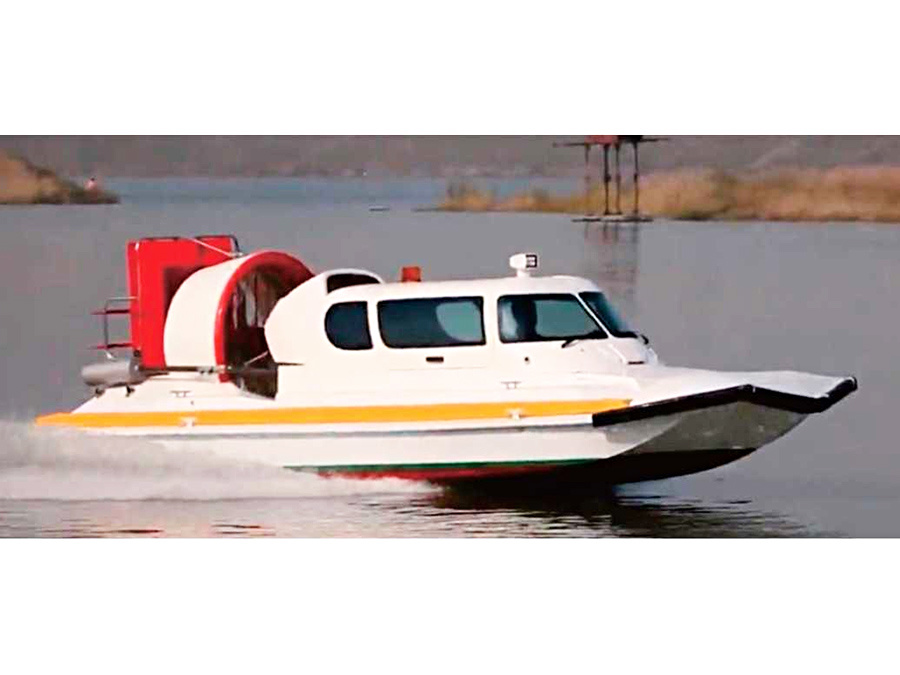

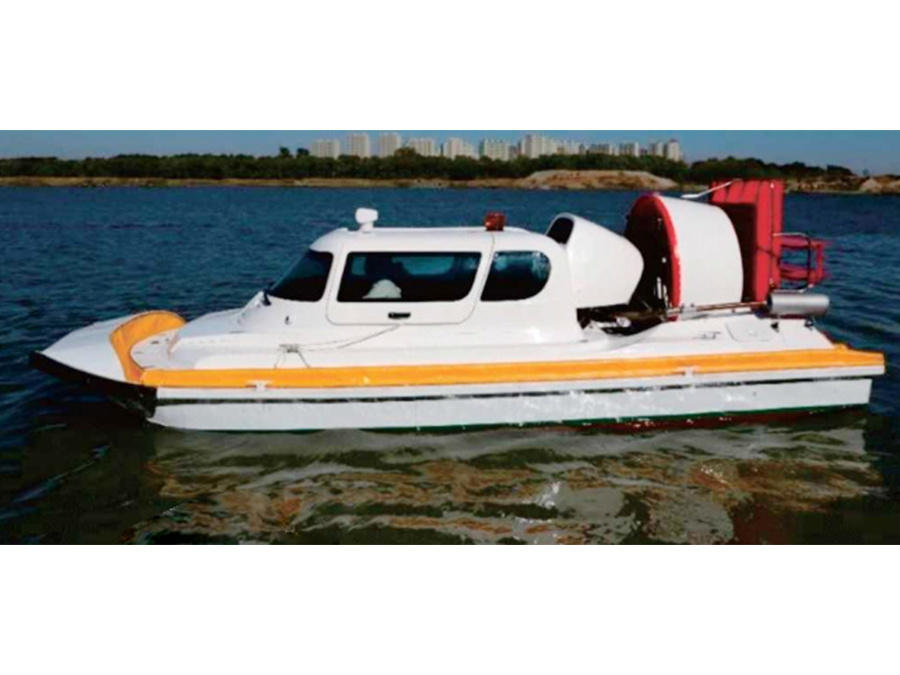

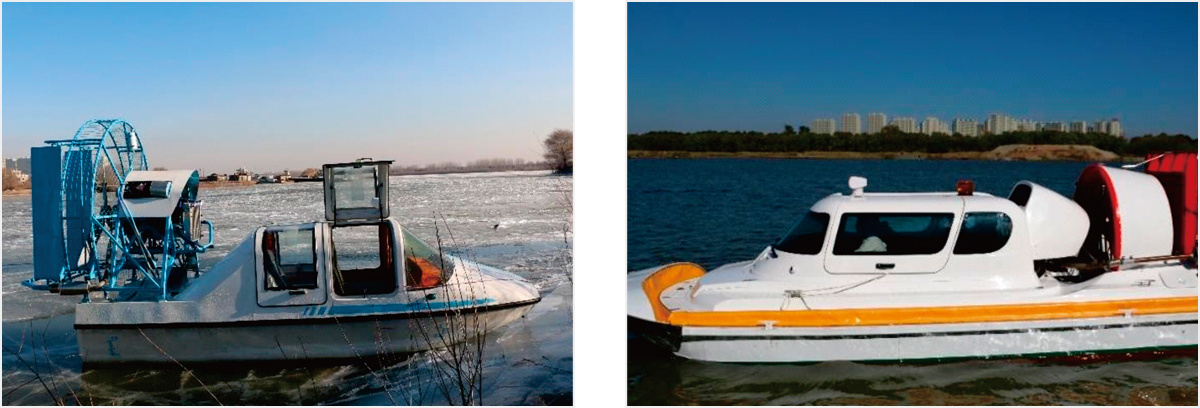

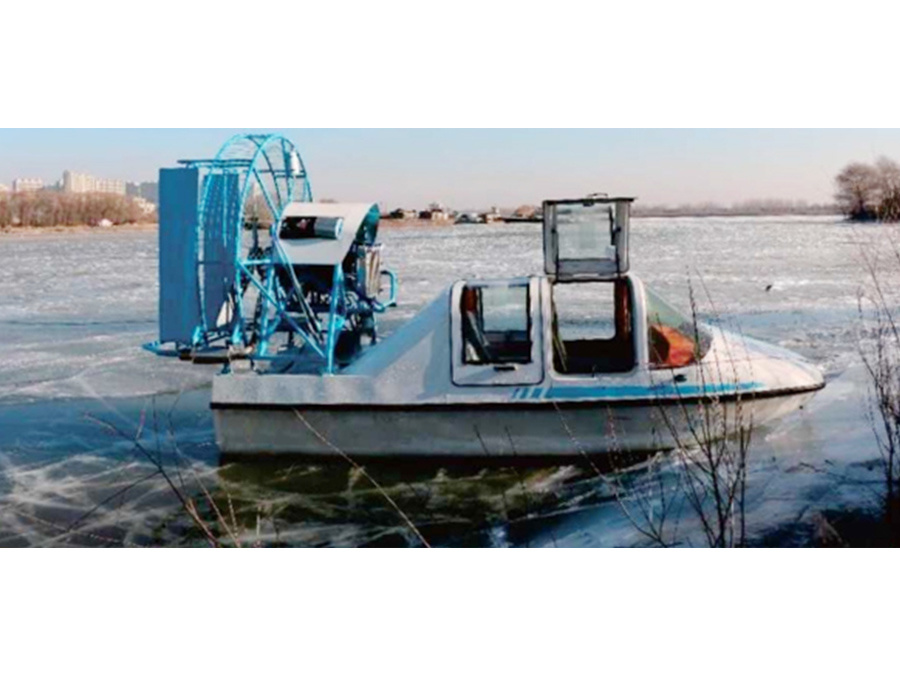

Drift Ice Patrol Boats
Category：
Mainly used for border patrol, border anti-smuggling, border post, address exploration and tourism in drift ice period, ice and snow conditions.
Keyword：
Product Details
图文详情

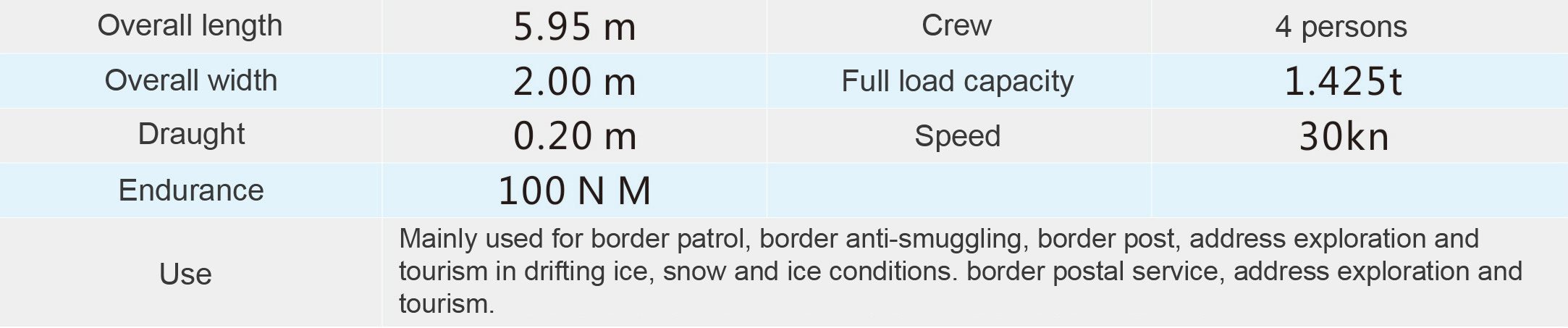

Main parameters table
Structure
The hull plate and cab are made of 5083 aluminium alloy, the profile is made of 6082 aluminium alloy, the hull is covered with high density polyethylene sheet and lined with 50mm shock absorbing sponge.
System fuel
The fuel tank volume of this boat is 180L, and the endurance of this boat is ≥3h under 30 knots cruising speed.
Power Equipment
The boat adopts air propeller and the main propulsion engine is a TOYOTA1UZ petrol engine with a rated power of 265hp and a maximum speed of 6000r/min and a maximum speed of more than 30 knots.
Interior
A lounge cabin and a cockpit are provided. The interior is equipped with 4 single shock absorbing seats and integrated console.
Fire-fighting
There are 2 portable fire extinguishers and 1 fire fighting water bucket on board.
Emergency rescue
The boat's swing diameter is not greater than 3 times the length of the boat.
