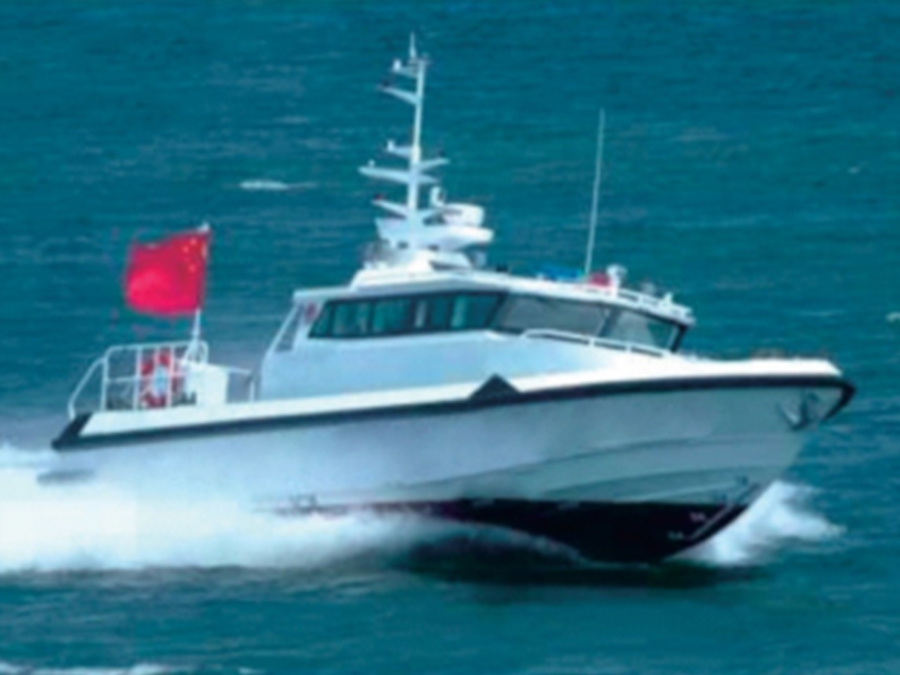

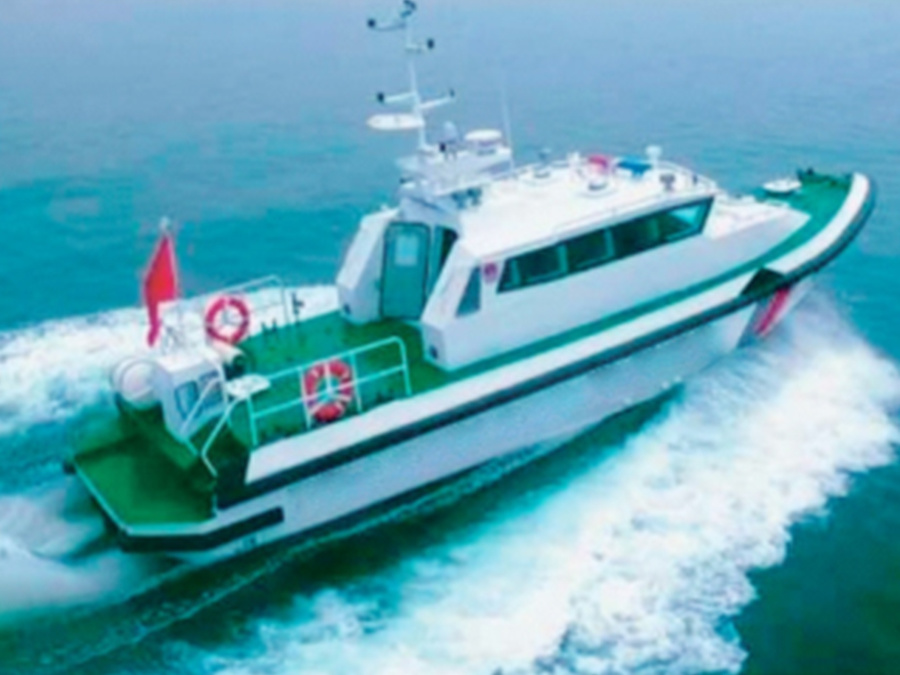

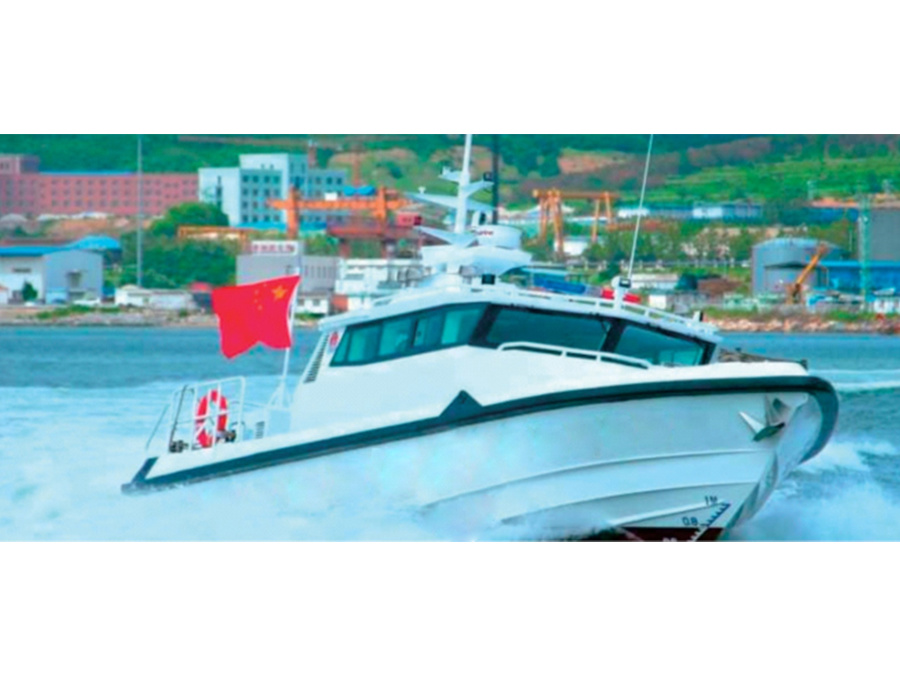

14m patrol boat
Category：
Fast Assault Transport Boat / High Speed Interceptor.
Keyword：
Product Details
图文详情

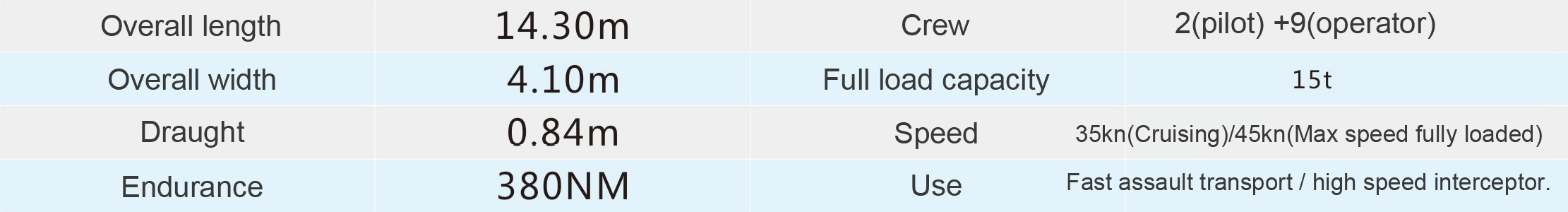

Main parameters table
Construction
Hull, deck and superstructure, all in seawater resistant aluminium alloy, longitudinal skeleton.
Interior
Bow cabin and control room with non-staining or fire retardant insulation on ceiling and walls, aluminium decking with polished stainless steel/anodised honeycomb panels, toughened safety glass windows and front windscreen with water jet and synchronised wiper;
Vibration damping seats in the cabin areas and a full vessel noise reduction solution can be tailored to customer requirements.
Fuel system
Two fuel tanks with a capacity of 2500L are installed symmetrically on the port and starboard sides.
Domestic water system
Fresh water tank: 200L, grey water: 50L
Black water: 50L
Fire bilge
Two bilge pumps installed in the engine room, automatic fire detection unit.
Ventilation and air conditioning
Two overhead air conditioners in the cockpit, heavy duty recessed heating/cooling units with integrated air cleaners, ventilation vents to the cabin on the port and starboard sides of the cabin section, water discharge grille exhaust at the aft of the cabin.
Electrical
220V AC power supply to shore power interface
24V DC power supply for batteries
Deck outfitting
Deck outfitting in polished stainless steel/anodised aluminium, rails and handrails in the pedestrian area and in the mooring handling area Mooring equipment: bollards, grappling anchors.
Electronic equipment
Specialised navigation equipment: radar, magnetic compass, electronic chart GPS, search light warning light (with built-in speaker), depth sounder, SART/EPIRB/P-VHF, CCTV system, VHF (DSC) radio.
Mechanical equipment
2 x Mercury VOLVO PENTA main engines
2 Hamilton water jet propellers
Other
Life-saving: 12 air swell liferaft
De-shaking equipment: De-shaking gyro
Attitude adjustment: cut-off panels
Classification Society
Meets: CCS Technical Regulations for the Survey of Small Coastal Vessels Rules Offshore High Speed Vessel Classification and Construction Regulations (optional classification according to customer requirements).
